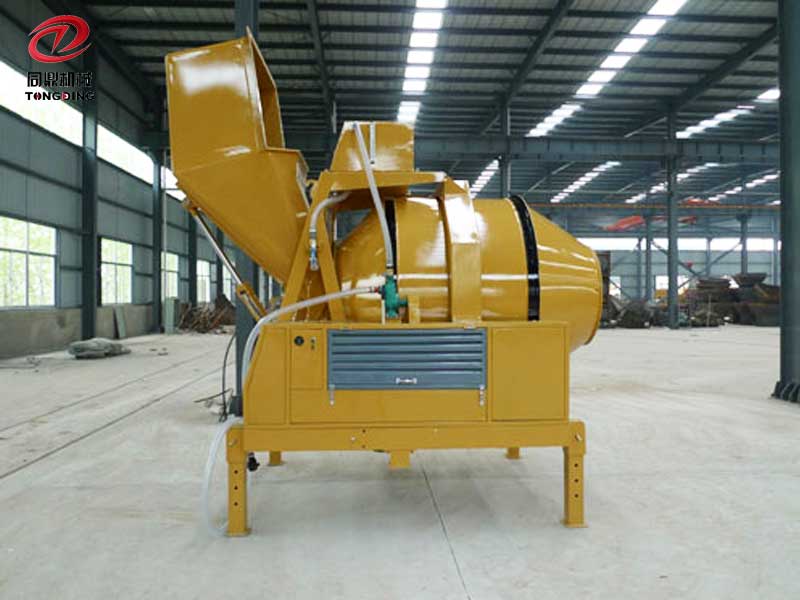

TD-JZR500 Diesel Engine Concrete Mixer

Description of TD-JZR Diesel Engine Concrete Mixer:

TD-JZR500 diesel engine concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.
The concrete mixer is widely used in building site, road and bridge project, and many other construction sites.

Features of TD-JZR500 Diesel Engine Concrete Mixer:
1) It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.

Parameters of TD-JZR500 Diesel Engine Concrete Mixer:

Model		TD-JZR500
Type		Self-falling
Towing		Four-towing wheels
Capacity of loading		750L
Capacity of discharging		500L
Capacity of water tank		140L
Diesel engine	Model	YANMAR CY1115-XE
	Power	14.7kw
	Speed	2200r/min
Max towing speed		20 km/h
Max. Aggregate size		60mm
Output		18~22m3/h
Hopper lifting model		Hydraulic tipping hopper
Tire		6.50-16
		4.00-8
Overall dimension(L×W×H)		3750×2240×3800mm
Total weight		2050kg
