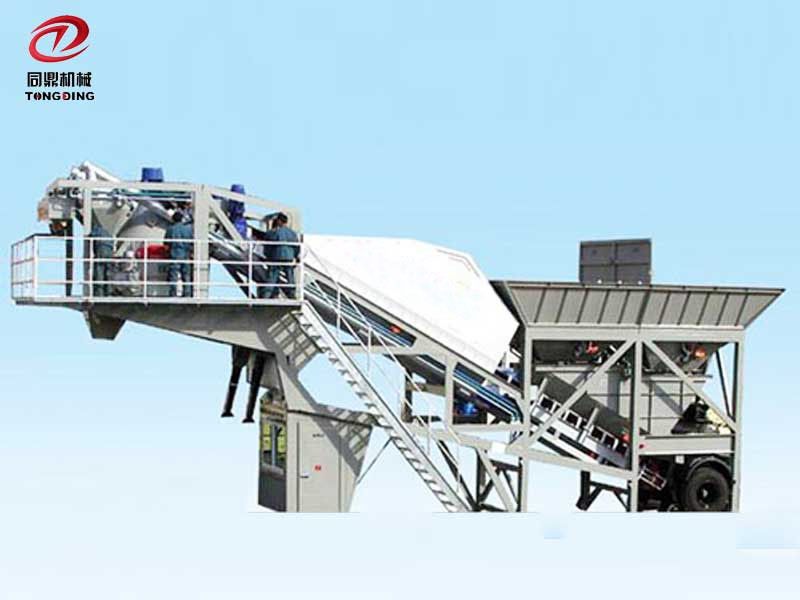

Features of TD-UTM-35 Mobile Concrete Batching Plant:
1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.
General Information of TD-UTM-35 Mobile Concrete Batching Plant:
Capacity: 35m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 60kw
Total Weight: 18Ton
Total Dimensions: 14500×4050×7600mm
Transportation: Double Axle Chassis
Technical Parameters of TD-UTM-35 Mobile Concrete Plant:
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: TD-JS750
Volume: 1250 L
Capacity: 750 L
Paddle quantity: 16 pieces
Paddle Speed: 30.5r/min
Mixing Motor: 30kw
2. AGGREGATE SYSTEM
2.1Aggregate Batcher: PLD1200
Volume: 4×5m3=32
Sort of aggregate: 4
Capacity: 60 m3/h
Power: 7.5 kw
Sand vibrator: 0.37kw×2
2.2. Aggregate Belt Conveyor 1 unit
Width: 800 mm
Length: 18000mm
Speed: 1.6 m/s
Motor: 7.5 kw
3. CEMENT SYSTEM
Cement Silo: 20 Ton
Cement Screw Feeder: 2 units
Diameter: Φ219mm
Length: 11.8 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3 kw
5. WATER SYSTEM
Submersible pump: 3 kw
Water pump: 0.75 kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5 kw
Pressure: 0.7 Mpa
Air flew: 0.8 m3/min
7. WEIGHING SYSTEM:
7.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
7.2 Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
7.3 Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
7.4 Additive Weighing 1 unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
