Site : Syria
Equipment: HZS25 concrete batching plant
Our HZS25 concrete batching plant was installed in Syria and were on delivered 2012,12th,May . And the installation is very successful.
Features :
1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens TD-PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.
Technical Parameters of TD-HZS25 Concrete Mixing Plant:
Capacity: 25 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 60KW
Total Weight: 25Ton
Total Dimensions: 15000×8000×12000 mm
| 1. MIXING SYSTEM Twin Shaft Concrete Mixer: TD-JS500 Volume: 800L Capacity: 500L Mixing blade: 2×7 pcs Mixing Speed: 35 r/min Mixer Motor:18.5 kw Weight: 3700kg Dimensions: 3030×2300×2680mm |
2. AGGREGATE SYSTEM 2.1 Aggregate batcher: TD-PLD800 Volume: 2×2 m3 Capacity: 48m3/h Power: 3×3 kw Weight: 2300 kg Dimension: 6400×1600×3000mm 2.2 Lifting hopper: 1 unit Speed: 0.28 m/s Power of Motor: 5.5 kw |
3. EMENT SYSTEM (OPTIONAL) 3.1 Cement silo: 2units Capacity: 50t×2=100t Silo Diameter: Φ2800 3.2 Cement Screw Feeder: 2units Diameter: Φ219mm Length: 9m |
4. WEIGHING SYSTEM 4.1 Aggregate Weighing: 1unit Weighing Capacity: 1500kg Precision: ±1% 4.2 Cement Weighing: 1unit Weighing Capacity: 300kg Precision: ±1% 4.3 Water Weighing: 1unit Weighing Capacity: 150kg Precision: ±1% 4.4 Additive Weighing: 1unit Weighing Capacity: 40 kg Precision: ±1% |
| 5. WATER SYSTEM Motor Power: 3kw Butterfly Valve: Φ150 mm Capacity: 50m3/h |
6. AIR SYSTEM Air Compressor: 1unit Power: 5.5 kw Pressure: 0.7 Mpa Air flew: 0.67 m3/min |
7.ADDITIVE SYSTEM (OPTIONAL) Additive silo Capacity: 1m3 Pneumatic Valve: Φ50 mm Pump: 3kw |
8. CONTROL SYSTEM TD-PLC command and control operation Main electrical components: SCHNEIDER or SIMENSE 17’’ colorful computer Manuel and Auto Control is freely changeable |

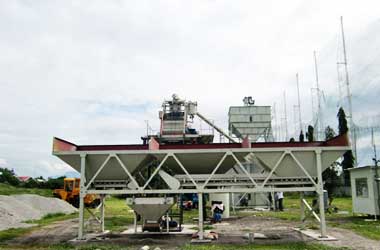

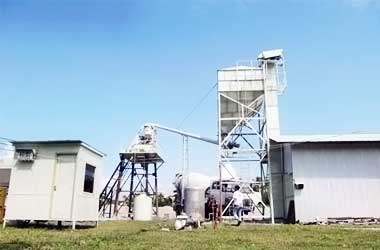

And please check our delivery pictures right below:
 |
 |
