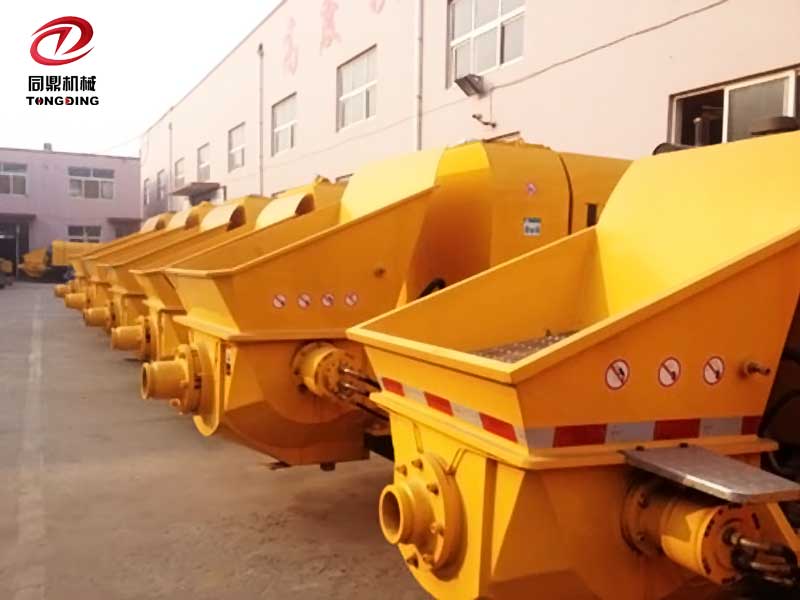

Concrete Trailer Pump

Description of Concrete Trailer Pump:
This concrete pump is with efficient hydraulic system, new high-speed commutation with pumping exchange efficiency being increased by 12%. The main cylinder waterproof seal patented technology, effectively preventing water from entering the hydraulic system to avoid hydraulic oil emulsion; Advanced S valve system of concrete trailer pump has good sealing performance, economic and durable quick-wear parts, easy replacement; Hydraulic and electrical components adopt international famous brands with high reliability.

 Features
1.This concrete pump is with efficient hydraulic system, new high-speed commutation with pumping exchange efficiency being increased by 12%.
2.Large displacement pumping systems, the suction efficiency having been increased by 6% to meet the needs of a variety of operating conditions;
3.Full hydraulic commutation open system, high hydraulic oil cleanliness, low oil temperature, small impact;
4.The main cylinder waterproof seal patented technology, effectively preventing water from entering the hydraulic system to avoid hydraulic oil emulsion;
5.Advanced S valve system, good sealing performance, economic and durable quick-wear parts, easy replacement;
6.Hydraulic and electrical components adopt international famous brands with high reliability.

Parameters

Name			TD-HBT60S-9-75	TD- HBT80S-13-110	TD-HBT80S-16-132
Item		Unit	S Tube Concrete Pump	S Tube Concrete Pump	S Tube Concrete Pump
Theoretic concrete delivery volume	Low pressure	M3/h	60	80	80
	High pressure		36	47	46
Theoretic concrete delivery pressure	Low pressure	Mpa	5.7	7.6	9.6
	Highe pressure		9	12.5	15.7
Hydraulic pressure		Mpa	26	32	32
Electric motor speed		r/min	1480	1480	1480
Main oil pump		Original German HAWE/Rexroth and Japanese Kawasaki
Main cylinder dia./pole dia. × stroke		mm	125/80*1650	125/80*1650(1800)	140/90*1650(1800)
Delivery cylinder dia.		mm	200	200	200
Electric motor power		Kw	75	110	132
Capacity of hydraulic oil tank		L	500	500	500
Hopper Capacity		M3	0.6	0.6	0.6
Overal weight		Kg	6000	6200	6500
Max. delivery distance	Vertical	m	150	180	250
	Horizontal	m	600	700	1000
