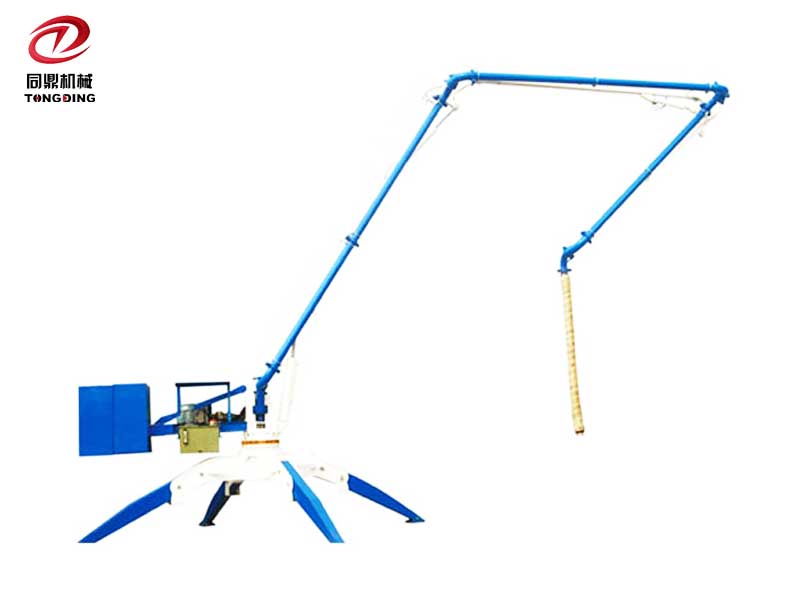

Mobile Placing Boom

Describe:
Z-shaped three-section foldable arm, 360° rotation, capable of pitching, unfolding, folding and changing amplitude, realize all-dimensional pouring of the three-dimensional cubical space within the length range of the arm rest, free of dead pouring angle,

We are here to help:Easy ways to get the answers you need.

Send E-mail get price

  • Product Detail
  • Application
  • Advantages
  • Parameters
Description of Mobile Placing Boom:
Z-shaped three-section foldable arm, 360° rotation, capable of pitching, unfolding, folding and changing amplitude, realize all-dimensional pouring of the three-dimensional cubical space within the length range of the arm rest, free of dead pouring angle, capable of realizing the concrete pouring of various field operations such as wall bodies, tubes, pillars and piles.
Drive and Operation Mode
The unfolding, folding, pitching and rotation of the arm rest are driven hydraulically. Main hydraumatic electrical elements such as hydraulic motors, sealing elements, oil tubes, motors and contactors as well as switches and buttons adopt high-quality imported or joint venture products. The system is provided with devices for overcurrent protection, flow control, phase sequence protection, etc. to ensure stable, safe and reliable performance of the complete machine. Working of the complete machine is controlled by buttons, featuring simple operation and stable movement.

Features of Mobile Placing Boom:
1.Fixation is unnecessary during use and it can be located flexibly according to demand of on-site pouring.
2.Compact structure, light weight, can be hoisted and transported wholly.
3.Flexible, wide application range, suitable for complicate construction site;
4.Convenient, safe, reliable, economic, practical;

Parameters of Mobile Placing Boom:

Model TD-HGY15 TD-HGY17/18
Fabric arm length (m) 15 17/18
Turning angle 360° 360°
Pitch angle 0~90° 0~90°
Hydraulic system power (kw) 4 5.5
System working pressure (Mpa) 20 20
Weight (T) Self-weight 3.23 4.94
With weight 5.43 7.04
 Z-shaped three-section foldable arm, 360° rotation, capable of pitching, unfolding, folding and changing amplitude, realize all-dimensional pouring of the three-dimensional cubical space within the length range of the arm rest, free of dead pouring angle, capable of realizing the concrete pouring of various field operations such as wall bodies, tubes, pillars and piles.
Drive and Operation Mode
The unfolding, folding, pitching and rotation of the arm rest are driven hydraulically. Main hydraumatic electrical elements such as hydraulic motors, sealing elements, oil tubes, motors and contactors as well as switches and buttons adopt high-quality imported or joint venture products. The system is provided with devices for overcurrent protection, flow control, phase sequence protection, etc. to ensure stable, safe and reliable performance of the complete machine. Working of the complete machine is controlled by buttons, featuring simple operation and stable movement.
 1.Fixation is unnecessary during use and it can be located flexibly according to demand of on-site pouring.
2.Compact structure, light weight, can be hoisted and transported wholly.
3.Flexible, wide application range, suitable for complicate construction site;
4.Convenient, safe, reliable, economic, practical;
 Parameters of Mobile Placing Boom:
Model TD-HGY15 TD-HGY17/18
Fabric arm length (m) 15 17/18
Turning angle 360° 360°
Pitch angle 0~90° 0~90°
Hydraulic system power (kw) 4 5.5
System working pressure (Mpa) 20 20
Weight (T) Self-weight 3.23 4.94
With weight 5.43 7.04
